在连接到SolidFire阵列时、三端存储如何处理CHAP密钥

Views:
Visibility:
Public
Votes:
0
Category:
astra_trident
Specialty:
solidfire
Last Updated:

适用场景

三叉

问题解答

在为 SolidFire配置CHAP以使其向SolidFire阵列进行身份验证时、CHAP密钥来自CHAP帐户。  创建帐户时会自动定义CHAP。属于该帐户的所有卷都使用在该帐户中配置的密码。如果此卷不在任何卷访问组 (VAG)中、则会 验证CHAP密钥

分配了Pod的工作节点上、通过CHAP信息设置iSCSI静态发现条目。然后、完成iSCSI登录并挂载卷、以便Pod可以访问永久性卷

需要访问卷的容器不会直接挂载SolidFire卷、主机客户端会 使用标准iSCSI命令挂载SolidFire卷

  • SolidFire帐户名称为租户名称
  • 创建帐户时会自动生成CHAP密钥
  • 通过TRIdent创建的卷属于此帐户
  • 在创建三元数据卷时、三元数据通过Element API调用从SolidFire集群获取CHAP密码
    • 通过  使用 后端文件中设置的凭据来运行SolidFire Element API (例如GetAccountByName)来获取帐户信息



创建帐户示例:

在连接到SolidFire阵列时、三进位处理CHAP密钥

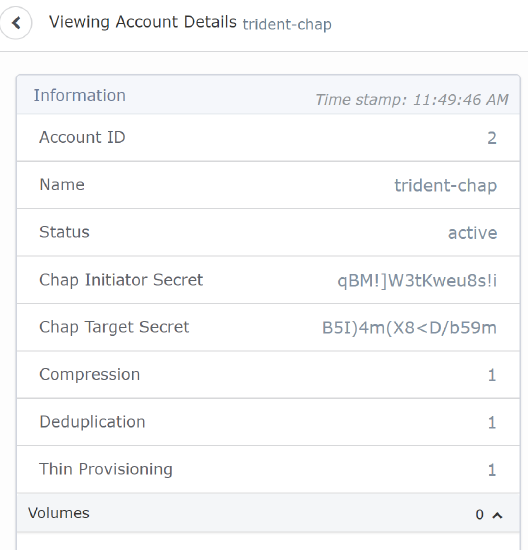

帐户详细信息示例:

在连接到SolidFire阵列时、三进位处理CHAP密钥



创建后端文件时,请将 UseCHAP设置 为true

后端文件示例:

{ "version": 1, "storageDriverName": "solidfire-san", "Endpoint": "https://<user>:<password>@<mvip>/json-rpc/8.0", "SVIP": "<svip>:3260", "TenantName": "<tenant>", "labels": {"k8scluster": "dev1", "backend": "dev1-element-cluster"}, "UseCHAP": true, "Types": [{"Type": "Bronze", "Qos": {"minIOPS": 1000, "maxIOPS": 2000, "burstIOPS": 4000}}, {"Type": "Silver", "Qos": {"minIOPS": 4000, "maxIOPS": 6000, "burstIOPS": 8000}}, {"Type": "Gold", "Qos": {"minIOPS": 6000, "maxIOPS": 8000, "burstIOPS": 10000}}] }
